The T25 comes with 3x batteries, charger and spreader
20kg spraying payload @ 16L/min
25kg spreading payload
Active Phased Array Radar + Binocular Vision
Dual Atomized Spraying System
Supports flight spraying/spreading and RC mapping
Product description
The DJI Agras T25 revolutionizes the field of precision farming, providing a sleek, powerful, and dependable drone solution for crop management. It boasts a 21% smaller footprint than its earlier model, yet it has the capacity to transport up to 20 kg for liquid treatments or 25 kg for solid applications, efficiently servicing an area of 12 hectares every hour.
The drone features a state-of-the-art Dual Atomised Spraying System and Dual Impeller Pumps, which deliver exact dosages of chemicals with variable particle sizes. Additionally, it offers a granule spreading system capable of distributing materials at a rate of 72 kg per minute.
For safety and precision, the Agras T25 is outfitted with comprehensive obstacle detection, a high-definition FPV camera for detailed mapping, and the durable RC Plus controller, ensuring it meets the high demands of modern agriculture with improved safety, efficiency, and adaptability.
Specifications
Aircraft Parameters
Total weight
25.4 kg (without battery)
32 kg (with battery)
Max Takeoff Weight
Max takeoff weight for spraying: 52 kg (at sea level)
Maximum takeoff weight for spreading: 58 kg (at sea level)
Max Diagonal Wheelbase
1925 mm
Dimensions
2585×2675×780 mm (arms and propellers unfolded)
1475×1540×780 mm (arms unfolded and propellers folded)
1050×690×820 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical
RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
Max slope in Mountain mode: 20°
Altitude detection range: 1-50 m
Stabilization working range: 1.5-30 m
Obstacle Avoidance
Obstacle sensing range (omnidirectional): 1-50 m
FOV: Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Sensing direction: 360° omnidirectional sensing
Binocular Vision System
Measurable Range
0.5-29 m
Effective Sensing Speed
≤10 m/s
FOV
Horizontal: 90; Vertical: 106°
Work Environment Requirements
Normal lighting with clearly textured surfaces

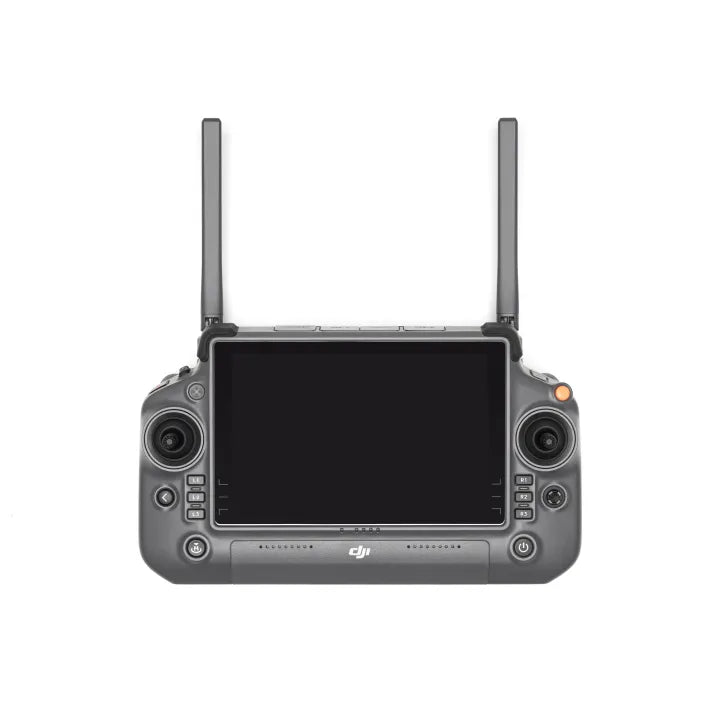

Intelligent Remote Controller
O3 Pro Operating Frequency
2.4000 to 2.4835 GHz
5.725 to 5.850 GHz
O3 Pro Signal Effective Distance
SRRC: 5 km
MIC/KCC/CE: 4 km
FCC: 7 km
(aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol
WIFI 6
Wi-Fi Operating Frequency
2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 to 5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Location
GPS + Galileo + BeiDou
Display Screens
7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness2
Operating temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range
-30°C to 45°C (within one month)
-30°C to 35°C (between one month and three months)
-30°C to 30°C (between three months and one year)
Charging Temperature
5° to 40°C (41° to 104°F)
Internal Battery Life
3.3 hours
External Battery Life
2.7 hours
Charging Type
Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.
Charging Time
Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)
