Includes everything you need to get spraying including 3x batteries and a charger
20kg spraying payload @ 16L/min
Active Phased Array Radar + Binocular Vision
Dual Atomized Spraying System
Supports flight spraying/spreading and RC mapping
Product description
This package gives you all the drone kit you need to get up and running as soon as possible. Complete with 3x fast charging batteries and the charger to keep you in the air. Equip yourself with the necessary extras to efficiently achieve your desired results.
The new flagship from DJI’s industry-leading DJI AGRAS agriculture drone line, the DJI AGRAS T25 sets a new standard for agriculture drones, delivering greater performance, efficiency and software integration than any other AGRAS.
Specifications
Aircraft Parameters
Total weight
25.4 kg (without battery)
32 kg (with battery)
Max Takeoff Weight
Max takeoff weight for spraying: 52 kg (at sea level)
Maximum takeoff weight for spreading: 58 kg (at sea level)
Max Diagonal Wheelbase
1925 mm
Dimensions
2585×2675×780 mm (arms and propellers unfolded)
1475×1540×780 mm (arms unfolded and propellers folded)
1050×690×820 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical
RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
Max slope in Mountain mode: 20°
Altitude detection range: 1-50 m
Stabilization working range: 1.5-30 m
Obstacle Avoidance
Obstacle sensing range (omnidirectional): 1-50 m
FOV: Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Sensing direction: 360° omnidirectional sensing
Binocular Vision System
Measurable Range
0.5-29 m
Effective Sensing Speed
≤10 m/s
FOV
Horizontal: 90; Vertical: 106°
Work Environment Requirements
Normal lighting with clearly textured surfaces

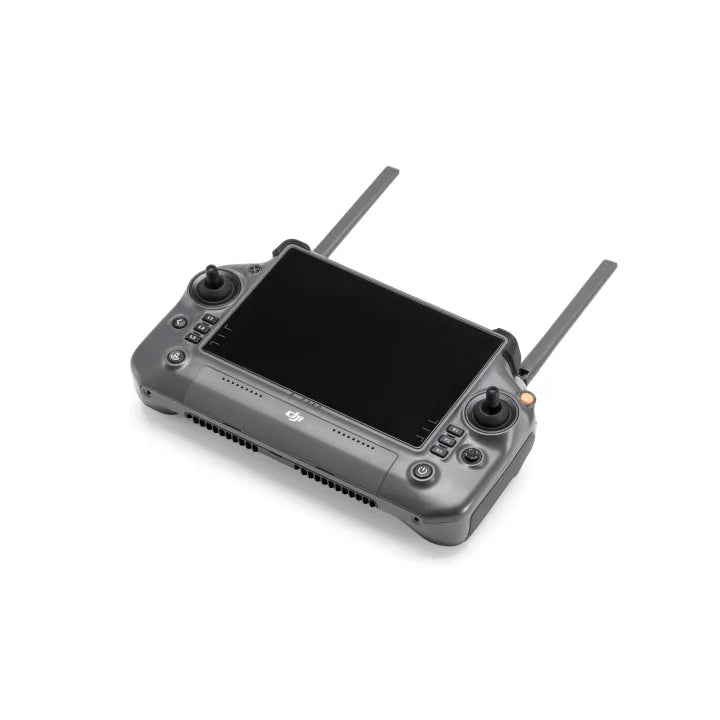

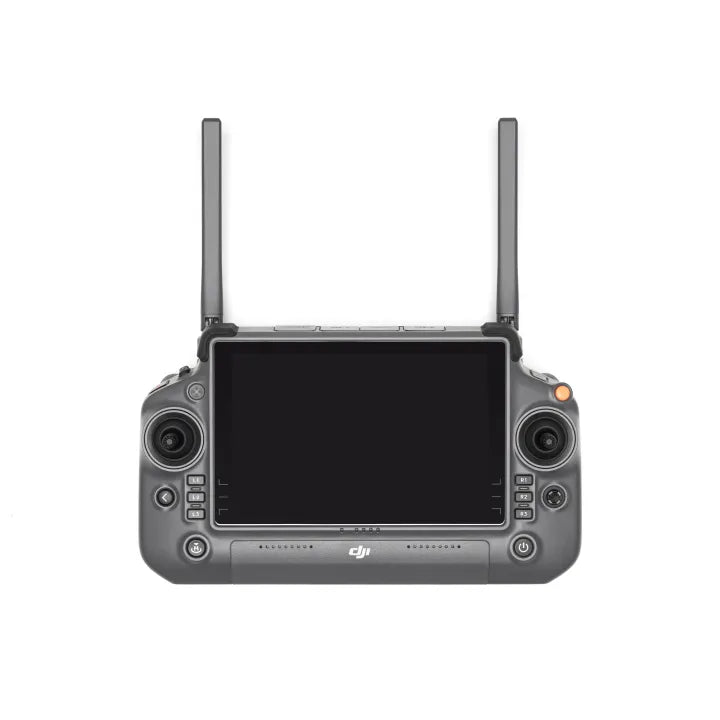

Intelligent Remote Controller
O3 Pro Operating Frequency
2.4000 to 2.4835 GHz
5.725 to 5.850 GHz
O3 Pro Signal Effective Distance
SRRC: 5 km
MIC/KCC/CE: 4 km
FCC: 7 km
(aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol
WIFI 6
Wi-Fi Operating Frequency
2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 to 5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Location
GPS + Galileo + BeiDou
Display Screens
7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness2
Operating temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range
-30°C to 45°C (within one month)
-30°C to 35°C (between one month and three months)
-30°C to 30°C (between three months and one year)
Charging Temperature
5° to 40°C (41° to 104°F)
Internal Battery Life
3.3 hours
External Battery Life
2.7 hours
Charging Type
Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.
Charging Time
Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)
